Marley

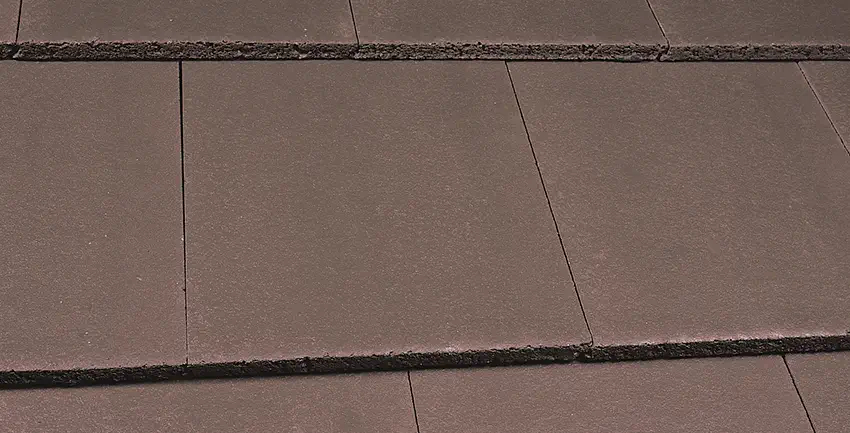

Marley Edgemere Thin Edge Roof Tile Smooth Brown 420 x 330mm
£1.70 exc. VAT
Postcode Check
Enter your postcode to find nearby stores and to check if we can deliver to you.
About Marley
Marley is a leading UK manufacturer of roofing solutions, offering a comprehensive range of high-performance products designed for both traditional and contemporary projects. Their selection includes clay and concrete roof tiles, such as the classic Acme Single Camber Plain Tile and the versatile Modern interlocking tile, available in various colours and finishes to suit diverse architectural styles. For those seeking sustainable options, Marley provides the SolarTile®, an integrated solar panel system that combines energy efficiency with aesthetic appeal.
Beyond tiles, Marley offers a complete roofing system encompassing underlays, battens, dry fix systems, and ventilation accessories, all engineered for compatibility and ease of installation. This holistic approach ensures durability, compliance with UK building standards, and peace of mind through a 15-year system guarantee. Whether undertaking a new build or a refurbishment, Marley’s extensive product range and commitment to quality make them a reliable choice for roofing projects.
Brochures
Product Description
Concrete interlocking tile with a thin leading edge offers the appearance of natural slate, at a fraction of the cost with an exceptional covering capacity.
Specifications
| Size of Tile | 420 x 330mm |
| Minimum Pitch* | 22.5° (75mm Headlap) 17.5° (100mm Headlap) |
| Maximum Pitch | 90° |
| Minimum Headlap | 75mm (22.5° and above) 100mm (below 22.5°) |
| Maximum Gauge | 345mm |
| Tile Thickness | 18mm (Nominal) |
| Cover Width | 298mm (Nominal) |
| Hanging Length | 395mm (Nominal) |
| Covering Capacity (Net) | 9.7 tiles/m² at 75mm Headlap 10.5 tiles/m² at 100mm Headlap |
| Weight of Tiling (Approx.) | 44kg/m² (0.43 kN/m²) at 75mm Headlap 47.5kg/m² (0.47 kN/m²) at 100mm Headlap |
| Battens Required (Net) | 2.9 lin.m/m² at 75mm Headlap 3.1 lin.m/m² at 100mm Headlap |
| Batten Size Recommended | 38 x 25mm for rafters/supports not exceeding 450mm centres (Fixed to BS 5534) 50 x 25mm for rafters/supports not exceeding 600mm centres (Fixed to BS 5534) |
| Fixings | 45 x 3.35mm Slate Nails |
| Fixing Clips | Eaves, Verge & Slate Clips |
| Authority | BS EN 490 |
*The minimum recommended pitch and lap may be influenced by special circumstances.
Sustainability
- A+ rated in the BRE Green Guide (Based on generic rating for UK produced concrete plain tiles Element Refs: 812410017, 812410050, 812410064).
- BES 6001 Responsible Sourcing Certified.
