ibstock staffordshire blue smooth perforated engineering brick 65mm

Related Categories

Specification

BrandIbstock
Product TypeEngineering Brick
Size65mm
TextureSmooth, Wirecut
Pack Quantity380
ColourBlue

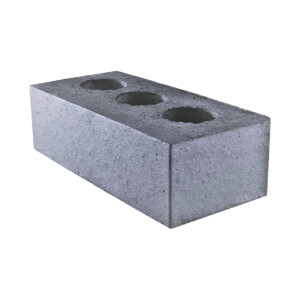

Ibstock Staffordshire Blue Smooth Perforated Engineering Brick 65mm

Postcode Check
Enter your postcode to find nearby stores and to check if we can deliver to you.
SKU: 12692
MPN: A2296A (LODGE LANE)
EAN: 5036335034569
Manufacturer / Supplier
About Ibstock

Ibstock is the UK’s largest brick manufacturer, boasting over 200 years of brickmaking heritage. Their extensive product range includes more than 450 different brick types, encompassing wire-cut, soft mud, handmade, and special-shaped bricks, all designed to meet diverse architectural and construction needs. With multiple manufacturing sites strategically located across the country, Ibstock ensures consistent quality and reliable supply for projects nationwide.

Beyond standard bricks, Ibstock offers a variety of masonry solutions such as precast arches, walling stone, cast stone, and architectural masonry. Their commitment to innovation is evident in their investment in advanced manufacturing facilities, like the fully automated Nostell factory, which enhances production efficiency and product consistency. Whether for new builds, renovations, or bespoke architectural designs, Ibstock provides the materials and expertise to bring construction visions to life.

Sample Request Form
Request a sample from Ibstock to be sent directly by post.

    Brick Matching Service

    Got existing brickwork you need to match? Get in touch and our brick category experts will be in touch.

    Specification

    BrandIbstock
    Product TypeEngineering Brick
    Size65mm
    TextureSmooth, Wirecut
    Pack Quantity380
    ColourBlue

    Product Description

    Application

    • Suitability – To be used in accordance with BS EN1996, PD6697 and our own recommendations.
    • Mortar Joint Profile – From a durability point of view, this product is suitable for all common joint profiles.
    • Movement Joints – Movement joints should be incorporated in accordance with BS EN1996, PD6697 and our own recommendations.

    Quality Assurance

    • Frost Resistance – This product is guaranteed for 60 years in buildings or 20 years in boundary walls. Excludes paving, steps & ramps.

    Workmanship

    • Colour – Mixing from a minimum of three packs on site will ensure a balanced blend of all the colours formed in the manufacturing process.

    Specifications

    Ibstock Code A2296A
    Factory Lodge Lane
    Type Wirecut Extruded
    Facing Description Smooth
    Pack Quantity 380
    Pack Size 1085 x 660 x 830mm
    Brick Dimensions (L x W x H) 215 x 102 x 65mm
    Size Tolerance Mean T2
    Range Tolerance Range R1
    Dry Brick Weight 2.4 Kg
    Weight Per Pack (Dry) 912 Kg Approx.
    Gross Dry Density (Sound Insulation) 1650 Kg/m³
    Nett Density 2300 Kg/m³
    Average Weight of Brickwork 204 Kg/m²
    Coverage Approx. 60 Bricks Per m²
    Density Tolerance D1
    Configuration Vertically Perforated
    Voids (%) 23-28%
    Compressive Strength >=75 N/mm²
    Equivalent Thermal Conductivity “K” Value 5% (Ex-Posed) 1.19
    Thermal Resistance ‘R’ 0.08 m²/K.W
    Durability F2~
    Water Absorption (% Weight) <=7%
    Water Vapour Diffusion Coefficient 50/100 mu
    Bond Strength – Fixed Value 0.15 N/mm²
    Initial Rate of Absorption (Suction Rate) (Kg/m²/min) 0.1
    Active Soluable Salts S2
    Fire Reaction Euroclass A1

    Note: This engineering brick may vary in appearance, Ibstock recommend mixing from a minimum of three packs on site will ensure a balanced blend of all the colours formed in the manufacturing process. If you have any questions, please contact us at sales@myersbuildingsupplies.co.uk.
